Guest Wi-Fi vs IoT VLAN: Isolation Without Breaking Everything

Guest Wi-Fi and IoT VLANs both isolate devices, but the operating model is different. Guests should get internet and little else. Smart home devices often need controlled reachability to hubs, phones, Home Assistant, mDNS, and cloud services.

That difference is why a guest SSID is not always enough for a smart home.

Quick reference: Use guest Wi-Fi for visitors. Use an IoT VLAN when you need long-term policy for smart devices, controllers, and discovery traffic.

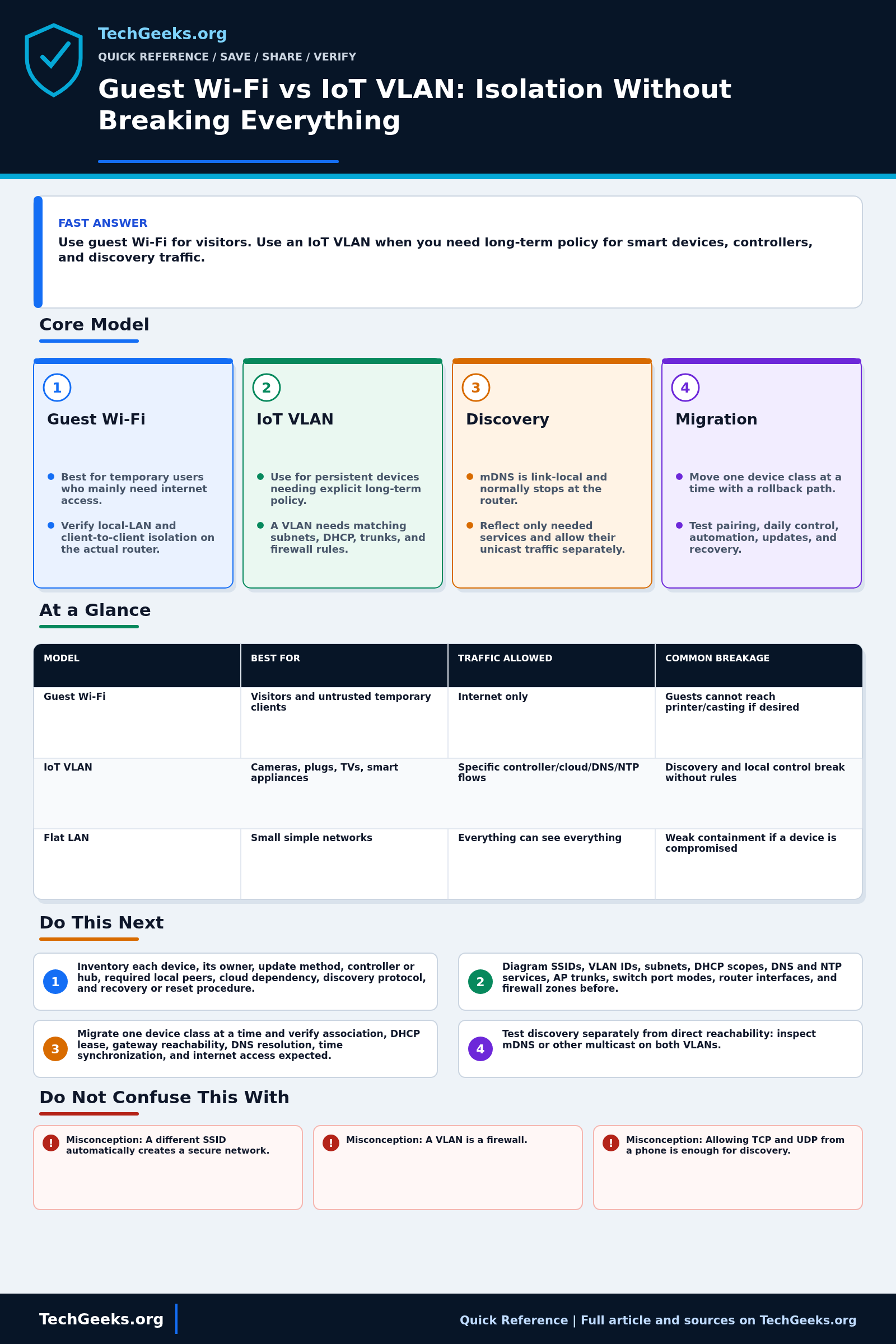

Interactive quick reference

Guest Wi-Fi vs IoT VLAN: Isolation Without Breaking Everything

Use this card as the simple mental model, then use the article sections below for the operational details.

Start simpleVerify the result

1. Guest Wi-Fi

Temporary users get internet with no access to private devices.

2. IoT VLAN

Smart devices live in a separate network with controlled access to controllers.

3. Controller placement

Home Assistant, phones, hubs, and border routers need deliberate reachability.

4. Validation

Pairing, casting, printing, and automations must be tested after segmentation.

Fast Answer

Use guest Wi-Fi for temporary people who normally need internet only. Use a dedicated IoT VLAN for devices you own when phones, hubs, Home Assistant, discovery, updates, or selected cloud flows require durable policy. Before trusting either option, test its actual client isolation, IPv4 and IPv6 routing, DNS and time access, and required local control. Keep a rollback SSID or switch port while migrating one device class at a time.

Start Here: The Beginner Foundation

A guest Wi-Fi feature is usually a ready-made policy for temporary users: give them internet access while limiting access to the private LAN and, often, to one another. The exact behavior is a product choice, not a universal standard. Some routers place guests in a separate subnet and firewall zone, while others provide only wireless client isolation or use different rules on different radios. Test the feature before trusting the label, especially if guests should be able to reach a printer, display, or casting receiver.

An IoT VLAN is a long-lived network segment for devices such as cameras, plugs, televisions, appliances, and hubs. The VLAN separates Ethernet frames at Layer 2, while a router or firewall controls traffic between the IoT subnet, trusted clients, management systems, and the internet. Creating VLAN 30 does not by itself make devices safer: the AP, switch trunks, access ports, DHCP service, IP subnet, DNS, and firewall rules all need to agree. The security benefit comes from explicit, tested policy and smaller trust boundaries, not from the VLAN number.

Smart-home control is harder than guest access because discovery protocols are often local to one link. Multicast DNS, used by many discovery systems, is link-local by design; other products may use SSDP, broadcasts, vendor clouds, or direct unicast connections. A phone on the trusted VLAN may therefore fail to find a device on the IoT VLAN even when a firewall rule permits the final TCP or UDP session. Deliberate mDNS gateway or reflector scope, controller placement, and narrow firewall rules can restore required functions, but each device workflow should be tested from pairing through normal use and firmware update.

The Fast Comparison

Model	Best for	Traffic allowed	Common breakage
Guest Wi-Fi	Visitors and untrusted temporary clients	Internet only	Guests cannot reach printer/casting if desired
IoT VLAN	Cameras, plugs, TVs, smart appliances	Specific controller/cloud/DNS/NTP flows	Discovery and local control break without rules
Flat LAN	Small simple networks	Everything can see everything	Weak containment if a device is compromised

Advanced Notes and Design Boundaries

Segmentation is an enforced traffic policy, not an SSID name or VLAN ID. The design must describe which identities may initiate which IPv4, IPv6, multicast, broadcast, DNS, time, update, and management flows across every AP, switch, router, and controller in the path.

• Map SSID-to-VLAN assignment through the entire path. Tagged AP uplinks, switch allowed-VLAN lists, native or untagged VLAN expectations, router subinterfaces, and DHCP scopes must match; a PVID mismatch can look like an authentication or DHCP failure.
• Start with stateful directionality: permit trusted controllers to initiate only the required sessions toward IoT, allow established return traffic, and separately define IoT egress for DHCP, DNS, NTP, updates, and necessary cloud services. Review logs before narrowing further.
• mDNS uses link-local multicast and normally does not cross a router. An mDNS gateway or reflector should be scoped by interface and service type where the platform permits; reflecting advertisements does not automatically permit the advertised service through the firewall.
• Wireless client isolation and VLAN isolation solve different paths. Client isolation may block peers associated with the same SSID and AP, while inter-VLAN ACLs control routed traffic; verify wired devices and clients on different APs as well as same-radio peers.
• Apply equivalent intent to IPv4 and IPv6. Matter and many modern platforms use IPv6, so blocking or ignoring router advertisements, neighbor discovery, multicast, or IPv6 firewall policy can create a bypass or break operation even when IPv4 rules look correct.

Troubleshooting Workflow

Move devices by function and preserve a known-good control path. A broad temporary allow rule can help isolate a firewall problem, but it should be time-limited, logged, narrowed from observed requirements, and removed before the migration is accepted.

1. 1. Inventory each device, its owner, update method, controller or hub, required local peers, cloud dependency, discovery protocol, and recovery or reset procedure.
2. 2. Diagram SSIDs, VLAN IDs, subnets, DHCP scopes, DNS and NTP services, AP trunks, switch port modes, router interfaces, and firewall zones before moving any device.
3. 3. Migrate one device class at a time and verify association, DHCP lease, gateway reachability, DNS resolution, time synchronization, and internet access expected by policy.
4. 4. Test discovery separately from direct reachability: inspect mDNS or other multicast on both VLANs, then connect directly to the device IP and service port where the application allows it.
5. 5. Reproduce pairing, local control, automation, casting or printing, cloud control, firmware update, and controller recovery while watching firewall, DHCP, DNS, and mDNS-gateway logs.
6. 6. Remove temporary broad rules, document every retained exception with source, destination, protocol, port, and purpose, then retest after a lease renewal and device reboot.

Evidence and Acceptance Checks

The protocol behavior and risk model are documentation-backed by IEEE VLAN material, RFCs for multicast DNS and discovery proxying, and NIST consumer-IoT guidance. TechGeeks did not configure a representative router, switch, AP, Matter fabric, casting endpoint, or Home Assistant installation for this draft. No brand's guest toggle, reflector behavior, firewall syntax, or throughput was independently lab-tested.

• Isolation acceptance: an IoT or guest test client cannot initiate access to protected trusted and management addresses over either IPv4 or IPv6, including from wired paths and another AP.
• Service acceptance: association, DHCP, DNS, time, required updates, and intended cloud or local control survive reboot, lease renewal, and an AP handoff where relevant.
• Discovery acceptance: only approved service types cross the selected interfaces, and the advertised unicast service is separately permitted by a narrow firewall rule.
• Recovery acceptance: the documented fallback SSID or access port restores control, and saved configuration can be reapplied without factory-resetting every endpoint.

Security, Privacy, Legal, and Recovery Boundaries

Segmentation reduces reachable attack paths but does not patch vulnerable devices, secure vendor accounts, or inspect hostile encrypted traffic. DHCP, DNS, firewall, and discovery logs can reveal occupancy, device identity, destinations, and routines; retain only what is operationally justified and restrict access. Configure only networks you own or are authorized to administer. Employee, tenant, guest-notice, monitoring, and content-interception obligations vary by jurisdiction, so do not treat a home-lab packet capture as permission for workplace surveillance.

Export router, switch, and AP configuration before changing trunks, native VLANs, DHCP, IPv6, or firewall policy. Keep local access to the gateway and one known-good port or SSID outside the migration. Roll back the device class and its rules together; avoid factory resets until credentials, pairing codes, automations, camera retention, and controller backups are protected.

What This Does Not Mean

• Misconception: A different SSID automatically creates a secure network. Correction: An SSID is a wireless network name; meaningful isolation requires client isolation, VLANs or subnets, and enforced forwarding policy.
• Misconception: A VLAN is a firewall. Correction: A VLAN separates Layer 2 broadcast domains, but traffic between VLANs is controlled by the router, firewall, or Layer 3 switch policy.
• Misconception: Allowing TCP and UDP from a phone is enough for discovery. Correction: Many apps first depend on link-local multicast or broadcast discovery, which needs an explicit cross-subnet design before the unicast session begins.
• Misconception: Blocking all IoT internet access is always harmless. Correction: Some devices require cloud authentication, time, updates, notifications, or relays; determine and log required flows rather than assuming a universal policy.

The standards prove how VLAN and mDNS mechanisms are defined, not how a particular consumer router implements a guest feature or whether one rule set contains a compromised device. A successful phone-control test does not validate camera isolation, IPv6 parity, firmware updates, or every AP path. NIST guidance supplies outcome goals rather than vendor-specific configuration commands; acceptance requires tests on the deployed topology.

Real-World Use Cases

• Start with a simple guest network for visitors.
• Move IoT gradually, one device class at a time.
• Place Home Assistant and hubs intentionally.
• Allow only the flows required for local control.

Failure Patterns to Recognize

• Chromecast/AirPlay/printers fail across VLANs.
• Phone app cannot discover IoT device.
• Cloud-only device needs blocked outbound access.
• Thread/Matter border routers sit on the wrong network.

Common Mistakes

• Creating an IoT VLAN without firewall rules.
• Blocking all local traffic and expecting discovery to work.
• Moving everything at once.
• Forgetting DNS, NTP, and firmware update paths.

Quick Checklist

• Document device class and controller.
• Test pairing and daily automation.
• Check DNS/NTP/cloud endpoints.
• Review firewall logs.
• Keep a rollback port/SSID.

Common Questions

Can I put IoT devices on the guest network?

Yes, for simple cloud-managed devices when the guest implementation provides the isolation and persistence you need. It may fail for devices that require a local hub, phone discovery, casting, printing, inbound controller sessions, or stable addressing. Guest policies are often coarse and product-specific, so verify client-to-client behavior, local-LAN blocking, lease stability, and whether the guest SSID remains available after router updates or schedules.

How can a trusted phone control a device on the IoT VLAN?

Identify the complete workflow. Provide discovery through a carefully scoped mDNS gateway or the vendor's supported discovery mechanism, then permit the phone or trusted controller to initiate the required unicast service to the IoT subnet. Keep unsolicited IoT-to-trusted initiation blocked unless a documented function requires it. A controller such as a home-automation server can sometimes centralize these exceptions more cleanly than allowing every trusted client broad access.

Do Matter and Thread remove the need for VLAN planning?

No. Matter is an application-layer ecosystem built on IP, while Thread is one possible IPv6 mesh transport reached through a border router. Controllers, border routers, phones, and Wi-Fi or Ethernet Matter devices still need suitable IPv6 reachability, discovery, and policy. Placing a border router carelessly or blocking required multicast can break commissioning and control; allowing everything can erase the intended trust boundary.

Can one SSID place different devices into different VLANs?

Some business and advanced home platforms can assign VLANs dynamically using 802.1X, RADIUS attributes, device-specific credentials, or private pre-shared keys. Many consumer products cannot. Dynamic assignment reduces SSID count but adds authentication and troubleshooting complexity. Confirm how unknown devices, credential sharing, roaming, and fallback are handled before using it as a security control.

Useful Gear And Buyer Notes

Affiliate disclosure: As an Amazon Associate, TechGeeks may earn from qualifying purchases. The product links below are buying references, not a requirement to buy a specific brand or seller. Verify compatibility, seller quality, warranty, and current specs before ordering.

Confirm capabilities across the entire path before buying network hardware. A router that exposes VLANs may still lack per-zone IPv6 policy or scoped mDNS, and a managed switch or AP may require a separate controller or subscription; read current manuals for the exact model and firmware.

• Amazon search: VLAN capable router
• Amazon search: managed switch VLAN
• Amazon search: Home Assistant Green

Related TechGeeks Reading

• Smart Home VLAN vs Guest Wi-Fi vs a Second SSID expands the household decision.
• IoT Isolation in a Home Lab goes deeper into firewall and mDNS design.
• Beginner VLAN Layout for a Home Lab provides a broader segmentation starting point.

Current Context and Publication-Day Checks

Fact-checked July 15, 2026 against IEEE 802.1Q catalog information, RFC 6762, RFC 6763, RFC 8766, RFC 8882, and NIST IR 8228 and IR 8425. Before publication, verify those records and the live links, recheck Home Assistant and Matter networking guidance, and confirm that any named router workflow still exposes equivalent IPv4 and IPv6 policy, scoped discovery, and rollback controls in current firmware. Guest-network behavior must remain described as product-specific unless a particular model was tested.

References

• Home Assistant Documentation
• Connectivity Standards Alliance: Matter
• IEEE 802.1Q-2022 Bridges and VLANs Standard
• RFC 6762: Multicast DNS
• RFC 6763: DNS-Based Service Discovery
• RFC 8766: Discovery Proxy for Multicast DNS-Based Service Discovery
• RFC 8882: DNS-SD Privacy and Security Requirements
• NIST IR 8425: Consumer IoT Cybersecurity Profile
• NIST IR 8228: Managing IoT Cybersecurity and Privacy Risks

Last technical review for this Quick Reference draft: July 15, 2026. Recheck router firmware behavior, dual-stack policy, discovery scope, privacy notices, and recovery access before release.
